Network Planning Technique Explained Simply

What Is Network Planning Technique and Why Is It Indispensable for Modern Projects?

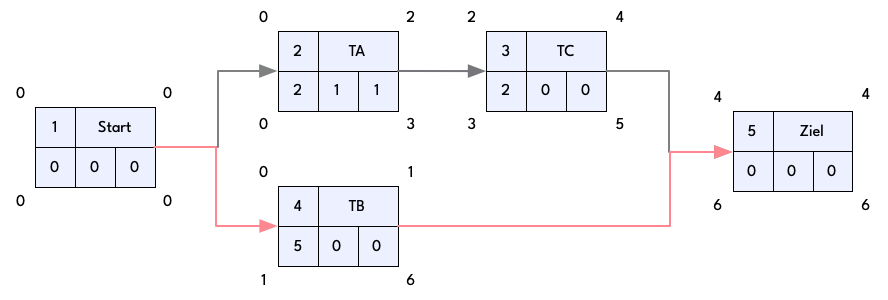

Network planning technique is a project management method for planning, controlling, and monitoring projects. It is based on the graphical representation of project workflows as a network of activities and their logical dependencies. Starting from a work breakdown structure, it is an excellent way to create a project schedule. This visual representation makes complex project structures tangible and analyzable.

The Historical Development: From Military Roots to a Universal Tool

Network planning technique did not emerge in a vacuum. The two main methods were developed almost simultaneously but independently of each other:

The Critical Path Method (CPM) was developed in 1957 by the DuPont company for planning maintenance work in chemical plants. The focus was on identifying the critical path — that chain of activities that determines the total duration of a project.

In parallel, the US Navy developed the Program Evaluation and Review Technique (PERT) in 1958 for the Polaris missile program. Unlike CPM, PERT considered uncertainty in time estimates from the outset by using probability distributions.

In Germany, the Metra Potential Method (MPM) was added in the 1960s, distinguished by its activity-on-node representation.

What was once painstakingly drawn with paper and pencil can now be created in minutes with specialized software. The fundamental principles, however, have remained the same.

The Added Value Compared to Traditional Planning Methods

I am often asked: “Why shouldn’t I just stick with my tried-and-tested bar charts?” The answer lies in the analytical depth of network planning technique:

Unlike simple bar charts (Gantt charts), network planning technique places logical dependencies at the forefront. You see not only WHEN something happens, but also WHY it must take place at that particular time.

The calculation of buffer times shows you which activities have flexible time windows and which must be met precisely. This enables precise resource allocation and prevents bottlenecks.

Identifying the critical path provides a clear focus for your attention: delays here directly impact the overall project duration.

Network planning technique can lead to complex representations for larger projects. It is not supported by many project management tools.

What Methods of Network Planning Technique Exist and How Do They Differ?

The various network planning methods are like different dialects of a language — they share the basic idea but differ in important details. Let me explain the three most important methods.

Critical Path Method (CPM): The Deterministic Approach

CPM is probably the best-known network planning method and is characterized by its deterministic approach. Here you work with fixed time values for each activity.

The core idea is identifying the critical path — that chain of activities that determines the minimum project duration. Activities on this path have no buffer; any delay extends the project timeline.

The strength of CPM lies in its clarity and precision. It is excellently suited for projects with well-plannable activities and known durations, such as in construction or manufacturing.

Program Evaluation and Review Technique (PERT): The Probabilistic Way

PERT fundamentally differs from CPM through its probabilistic approach. Instead of a fixed duration, you work here with three time estimates for each activity:

• Optimistic time (a): “In the best case, we can do it in…”
• Most likely time (m): “Normally it takes…”
• Pessimistic time (b): “In the worst case, it could take…”

From these three values, PERT calculates an expected duration using the formula: (a + 4m + b) / 6

The great advantage: PERT accounts for uncertainty in project planning and is therefore especially suited for research and development projects or other ventures with significant uncertainties.

In a software development project I supported, PERT enabled us to achieve more realistic scheduling by accounting for uncertainties with new technologies. While other teams regularly missed their deadlines, we achieved on-time delivery of over 90%.

Metra Potential Method (MPM): The European Alternative

MPM, also known as the activity-on-node network, is especially prevalent in Europe. Unlike CPM and PERT, which were originally conceived as activity-on-arrow networks, in MPM the activities are represented as nodes and the relationships as arrows.

A key advantage of MPM is the ability to represent more complex dependencies:

• Finish-to-start: B can only begin when A is finished
• Start-to-start: B can only begin when A has started
• Finish-to-finish: B can only finish when A is finished
• Start-to-finish: B can only finish when A has started

This flexibility makes MPM the ideal tool for projects with complex activity relationships, such as in plant engineering or systems development.

Decision Criteria: Which Method for Which Project?

The choice of the right method depends on several factors:

For projects with well-known durations and primarily simple finish-to-start relationships, I recommend CPM. Its clarity and simplicity make it the ideal entry point into network planning technique.

For significant uncertainties, such as in research projects or the development of new products, PERT with its probabilistic approach is the better choice.

When you need to map complex dependencies that go beyond simple finish-to-start relationships, reach for MPM.

In practice, I often use a combination of methods — for example, CPM for rough planning and PERT for particularly uncertain project phases.

How Do You Create a Network Plan Step by Step?

Creating a network plan may seem complex at first but follows a logical process. Let me guide you through the essential steps.

The Preparation Phase: Structure Your Project

Before you draw the first line of your network plan, you need to understand and structure your project. Begin by creating a work breakdown structure (WBS) that breaks the overall project into manageable work packages.

A work package should be small enough that it:

• can be assigned to one person or team
• has a defined start and end point
• shows measurable progress
• covers a manageable timeframe (usually 1–10 working days)

A well-structured WBS is the foundation of every network plan. In my projects, I consciously take time for this step — the better the structure, the more robust the subsequent plan.

Identification of Activities and Their Dependencies

Based on the WBS, you now define individual activities and their logical dependencies. An activity is a clearly defined piece of work with a defined beginning and end.

For each activity, ask yourself four central questions:

1. What must be completed before this activity can begin?
2. What can only begin once this activity is completed?
3. What can be carried out in parallel with this activity?
4. What resources are needed?

Identifying dependencies requires both technical understanding and experience. I recommend conducting this step in a workshop with subject matter experts. Visualize the dependencies first on a whiteboard or with sticky notes before transferring them to a tool.

Time Estimation: The Art of Realistic Forecasting

The quality of your network plan stands and falls with the accuracy of your time estimates. Don’t rely on optimistic assumptions or spontaneous assessments. Instead:

Use historical data from similar projects as reference points. Consult experts with practical experience in the respective activities. Consider learning curves, especially with new technologies or teams. Factor in an appropriate risk buffer for unforeseen events.

If you work with PERT, estimate the optimistic, most likely, and pessimistic duration for each activity. This gives you a significantly more realistic picture of the expected project duration.

The Right Tools: From Excel to Specialized Solutions

For simple network plans, standard office tools like Excel or PowerPoint are often sufficient. For more complex projects, however, I recommend specialized software:

Microsoft Project is the classic choice and offers comprehensive functions for network plan creation and analysis. Primavera P6 is especially prevalent in large projects and construction, impressing with its analytical depth. Jira with plugins like BigPicture offers good integration into agile development environments. Open-source alternatives like ProjectLibre or GanttProject offer basic network planning functions for smaller projects.

In my practice, I have had good experience with a combined approach: the initial structuring often takes place in workshops with sticky notes and whiteboards, followed by formal elaboration in specialized software.

A concrete example: When planning a factory relocation, we identified a critical dependency between dismantling a specialized machine and its installation at the new location through careful network plan creation. By recognizing this early, we could allocate additional resources and defuse a potential bottleneck.

What Do the Key Metrics in Network Planning Technique Mean?

Network planning technique delivers a series of metrics that are indispensable for project management. Understanding these is like reading a map for your project journey.

Earliest and Latest Times: The Temporal Framework

For each activity, network planning technique calculates four central time points:

The Earliest Start Time (EST) indicates when an activity can begin at the earliest. It results from the latest finish of all predecessor activities.

The Earliest Finish Time (EFT) is the earliest possible time at which an activity can be completed (EST + Duration).

The Latest Start Time (LST) indicates when an activity must begin at the latest without delaying the project end (LFT - Duration).

The Latest Finish Time (LFT) is the latest time by which an activity must be finished without jeopardizing the project end.

These calculations are performed in two passes:

• The forward pass determines EST and EFT, starting from the project start.
• The backward pass determines LST and LFT, starting from the project end.

From my own experience, I can say: understanding these values sharpens your eye for time flexibility and bottlenecks in the project. In an IT migration project, I was able to optimally fit the server switchover into a tight time window through precise analysis of the earliest and latest times.

Buffer Times: The Flexible Reserves

The true treasure of network planning technique lies in the calculation of various buffer times:

The Total Float (TF) of an activity indicates by how many time units it can be delayed without affecting the project end date (LFT - EFT or LST - EST).

The Free Float (FF) indicates by how many time units an activity can be delayed without affecting the earliest start times of subsequent activities.

The Independent Float (IF) is the time buffer that still exists even when all predecessors start as late as possible and all successors start as early as possible.

Knowledge of the various buffer types enables differentiated project management. In one of my product development projects, we used the buffer information to specifically concentrate additional resources on activities without buffers, while other activities with larger buffers were handled more flexibly.

The Critical Path: The Backbone of Your Project

The critical path is that chain of activities that determines the minimum duration of the project. Activities on this path have a total float of zero — any delay here immediately extends the project timeline.

Identifying the critical path delivers two decisive insights:

1. You know where your attention is required. Critical activities demand close monitoring and proactive risk management.

2. You recognize where acceleration potential lies. Shortening the project duration is only possible by accelerating activities on the critical path.

In my practice, I regularly review the critical path, as it can change during the project. A delay in a non-critical activity can bring it onto the critical path, shifting the focus of project controlling.

Progress Monitoring with Milestones

Milestones are special events in the project timeline that consume no time and mark important sections. They serve as checkpoints for progress measurement and provide occasions for project reviews.

Effective milestones should:

• have clearly defined results
• be measurable and objectively assessable
• be placed at strategically important points in the project timeline
• serve as decision points for “go/no-go” decisions

In a complex infrastructure project, I once deliberately reduced the number of milestones to seven — one per project phase, each with clear quality criteria. This sharpened the team’s focus and considerably simplified communication with the steering committee.

What Are the Most Common Mistakes When Applying Network Planning Technique?

Despite its power, network planning technique does not automatically lead to success. From my many years of experience, I would like to highlight typical pitfalls that I have observed or experienced myself.

Typical Pitfalls When Creating Network Plans

The most common mistake is probably excessive detail. An overly granular network plan becomes confusing and loses its value as a management tool. Find the right balance: enough detail for meaningful analysis, but not so much that you lose the overview.

Another classic mistake is “wishful thinking” in time estimates. Being realistic may be uncomfortable when there are deadline pressures, but optimistic estimates inevitably lead to delays and frustration. I advise using historical data and considering “Hofstadter’s Law”: everything takes longer than planned, even when you account for this law.

Many planners also forget “invisible” activities like approval processes, quality inspections, or delivery times. These often have a significant impact on the project timeline. In a construction project, I once overlooked the drying time of a specialty concrete — a seemingly trivial detail that later led to a two-week delay.

Overestimating Dependencies and Undervaluing Buffer Times

There is a tendency to define too many “hard” dependencies where flexible relationships would actually be possible. Not every relationship is technically mandatory; some are based on habit or perceived efficiency.

Critically question: Does activity B really have to wait until A is completely finished? Couldn’t B begin when A is 80% complete?

Equally problematic is ignoring buffer times in day-to-day project work. Buffers are often viewed as “reserves” that can be used without concern. This leads to no flexibility remaining when unforeseen events occur.

In an IT rollout project, I therefore established the rule that using buffer times must be a conscious decision that is documented and justified — similar to accessing financial reserves.

Recognizing and Resolving Resource Conflicts

A network plan initially considers only logical dependencies, not resource constraints. This frequently leads to unrealistic plans where the same resource is supposed to be deployed at multiple points simultaneously.

Resource planning requires an additional analysis step:

1. Identify resource requirements for each activity
2. Create resource histograms to identify over- and under-utilization
3. Resolve conflicts by shifting non-critical activities within their buffers
4. If necessary, adjust the plan through resource leveling

In a software development project, I recognized through this analysis that our critical backend developer was overloaded in the startup phase. By redistributing some tasks to other team members, we achieved more realistic planning.

Adjusting the Network Plan When Deviations Occur

A network plan is not a static document but a living management tool. Many project managers shy away from regular updates, whether due to time pressure or concern about making deviations visible.

My approach is pragmatic: the network plan should be updated regularly (at least monthly, weekly during critical phases). The following applies:

• Enter actual times for completed activities
• Adjust forecasts for ongoing activities
• Recalculate the critical path
• Define countermeasures for significant deviations

Regular updating makes problems visible early and enables proactive action. In one of my projects, this practice led to us recognizing an emerging delay in a software component three weeks earlier and being able to initiate countermeasures.

How Is Network Planning Technique Used Across Different Industries?

Network planning technique is not a one-size-fits-all approach. Its application varies considerably depending on the industry and project type. Let me show how different sectors exploit the full potential of this method.

Network Planning Technique in Construction and Architecture

The construction industry is practically predestined for network planning technique. Complex dependencies, clear milestones, and the need for precise scheduling make it an indispensable tool.

In construction projects, network planning technique typically follows the Critical Path Method (CPM), with individual trades defined as activities. Particular attention is paid to the interfaces between different trades — for example, the transition from structural work to technical building systems.

A key success factor is integrating approval processes and official inspections into the network plan. These are easily overlooked but can have massive impacts. In a hotel construction project, I deliberately planned generous buffer times for the fire safety inspection — a decision that paid off when unexpected requirements led to delays.

Modern BIM software (Building Information Modeling) now offers direct interfaces to network planning technique, so that 3D modeling merges with scheduling to create so-called 4D planning. This enables impressive visualizations of construction progress even before the first shovel is turned.

Application in Software Development and IT Projects

In the IT world, network planning technique has long had a difficult standing — agile methods like Scrum seemed to be in conflict. But especially in complex IT projects, I am witnessing a renaissance of network planning technique, albeit in modified form.

The key lies in hybrid application: while the overarching project structure with milestones and main dependencies is managed through a network plan, individual work packages can be implemented agilely. I call this approach “agile within a framework” — it combines flexibility in detail with commitment at the macro level.

In an enterprise software rollout, I successfully used this approach: the integration with legacy systems, data migration, and training measures were mapped in the network plan, while the actual development was organized in sprints.

The PERT method is particularly useful in IT projects. Estimating optimistic, likely, and pessimistic times accounts for the inherent uncertainty of software development. In a project to replace an ERP system, we consistently used PERT and achieved a remarkable planning accuracy of 85%.

Use in Product Development and Manufacturing

Product development places special demands on network planning technique. Here the process is often iterative, with loops and dependencies between parallel development streams.

In the automotive industry, I have seen how MPM (Metra Potential Method) is successfully used to map complex dependencies between mechanics, electronics, and software. MPM’s ability to represent different dependency types comes fully into play here.

A success factor is integrating quality gates into the network plan. These defined quality checkpoints ensure that only approved intermediate results proceed to the next phase. In the development of a medical device, this approach helped us systematically integrate regulatory requirements into the development process.

In manufacturing, network plans are used to optimize production processes. When converting a production process from batch to flow manufacturing, a detailed network plan helped us minimize machine changeover times and nearly eliminate idle times entirely.

Special Applications: Event Management, Research Projects, and More

The versatility of network planning technique is demonstrated in its application in niche areas:

In event management, it is indispensable for coordinating complex events. For an international congress with over 3,000 participants, a detailed network plan helped us optimize critical transitions between setup and teardown as well as parallel sessions.

Research projects especially benefit from PERT. In an interdisciplinary research project between industry and university, PERT enabled us to realistically assess project risks and define meaningful go/no-go decision points.

Network planning technique even finds application in disaster management and emergency planning. When developing an evacuation plan for a hospital, a network plan helped us determine the optimal sequence of measures and identify critical bottlenecks.

My experience shows: there is hardly a project type that cannot benefit from network planning technique — if it is properly adapted to the specific requirements.

How Is Network Planning Technique Evolving in the Digital Age?

Network planning technique, originally developed in the 1950s with methods like CPM (Critical Path Method) and PERT (Program Evaluation and Review Technique), is undergoing a profound transformation in the digital age. These changes affect not only the technical tools but also the underlying methods and ways of working.

Integration of Artificial Intelligence and Machine Learning

A significant development step is the integration of AI and machine learning into network planning technique. These technologies enable smarter predictions and optimizations:

AI-supported project planning can learn from historical project data and thereby deliver more realistic time estimates. For example, if certain task types have regularly required more time than planned in the past, an AI system can recognize this and suggest corresponding adjustments. This addresses one of the most common weaknesses of traditional network plans — the inaccuracy of human estimates.

Machine learning algorithms can also identify patterns in resource utilization and help detect bottlenecks early. This leads to more dynamic resource allocation compared to classic static network plans.

Real-Time Adaptability and Agility

Digitalized network planning technique enables a flexibility that was unthinkable in its paper-based origins:

Modern project management tools allow continuous recalculation of the critical path and other metrics with every change. This makes network planning technique compatible with agile methodologies geared toward rapid adaptation to changed circumstances.

An interesting example is the fusion of classical network planning technique with Scrum or Kanban. Here, the detailed scheduling aspects of network planning technique are combined with the flexibility of agile methods, which is especially advantageous for complex projects with many unknowns.

Cloud-Based Collaboration and Integration

The shift of network planning technique to the cloud is revolutionizing collaboration:

Team members can access current project plans regardless of their location and make updates. This is especially valuable in an increasingly globalized working world with distributed teams.

Modern network planning tools offer interfaces to other enterprise systems like ERP or CRM, enabling a seamless flow of information. For example, if a material delivery is marked as delayed in the ERP system, this information can automatically flow into the network plan and calculate impacts on subsequent activities.

Enhanced Visualization and Simulation

Visualization capabilities have expanded dramatically:

Where simple network diagrams were once drawn on paper, today’s tools enable interactive 3D visualizations of complex project structures. This significantly improves understanding of dependencies and critical paths.

A particularly fascinating advance is the integration of network plans into virtual reality environments. In construction projects, for example, project managers can walk through a virtual version of the planned building and visualize schedules, resource allocations, and progress indicators in the three-dimensional environment.

Data-Driven Decision Making

Decision making is increasingly supported by comprehensive data analysis:

Modern network planning systems continuously collect data on project progress and enable detailed analyses of performance indicators. These “big data” approaches help identify patterns that would not be recognizable with traditional methods.

Simulation tools allow you to run through various scenarios and forecast their impacts on the project timeline. For example, a project manager can simulate multiple resource allocation strategies and select the optimal solution based on cost, time, and risk.

Blockchain and Smart Contracts

One of the newest developments is the integration of blockchain technology into network planning technique:

Smart contracts can automatically verify the fulfillment of milestones and trigger corresponding payments or follow-up processes. This reduces administrative overhead and increases transparency.

The immutable nature of blockchain technology enables complete documentation of all changes to the network plan, which can be valuable for projects with high compliance requirements or in disputes between project partners.

Challenges and Outlook

Despite all the advances, challenges remain:

The increasing complexity of tools requires specialized knowledge. There is a risk that network planning technique will again become an expert tool that can only be fully understood and used by specialists.

The integration of various digital tools remains a challenge despite standardization efforts, especially when organizations work with different technological ecosystems.

For the future, it appears that network planning technique will become increasingly autonomous — with AI systems that not only perform analyses but also independently make adjustments to the project plan, based on continuous assessment of project progress and external factors.

Network planning technique is thus evolving from a static planning instrument to a dynamic, intelligent control system for complex projects — a development that is fundamentally reshaping project management in the digital age.

Frequently Asked Questions

What is network planning technique?

Network planning technique is a method in project management that graphically represents complex workflows and dependencies to identify the critical path and efficiently manage the project timeline.

Why is network planning technique important in project management?

The method helps you identify bottlenecks early, allocate resources optimally, and make the overall process transparent — essential for on-time and cost-efficient project execution.

How does network planning technique work?

First, you capture all required activities and arrange them logically in a network plan. Using methods like CPM and PERT, you identify the critical path and can precisely determine the time required as well as potential risks.

When should you use network planning technique?

Network planning technique is especially suited for complex projects with numerous interdependent tasks, high risk, or international collaboration, where transparency and precise planning are indispensable.

What advantages does network planning technique offer compared to traditional methods?

Compared to linear methods like the Gantt chart, network planning technique visualizes dependencies and critical paths, enabling you to achieve more precise planning, earlier risk mitigation, and more efficient resource utilization.
