An Overview of Project Phases

In project management, the project is structured into project phases during project planning. This makes it easier to manage risks, steer projects more effectively, and integrate a project into the ongoing processes of the executing organization. These project management phases are collectively referred to as the project lifecycle. Each phase typically ends with a milestone and is accompanied by the delivery of characteristic work products (deliverables). They simultaneously mark important project decision points.

The use of phases as a project management method is not limited to the classic waterfall model. In agile project management, for example, iterations can be understood as relatively short phases that are repeated cyclically until a product is complete.

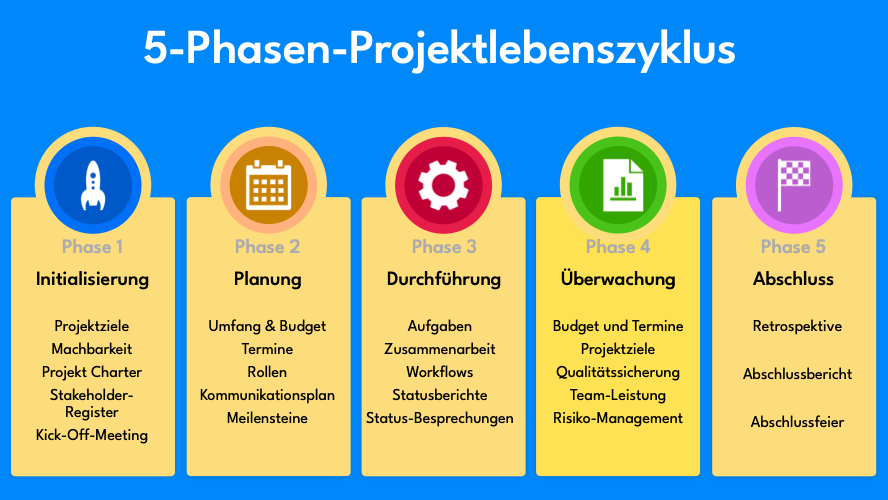

The 5 Phases of the Project Management Process

The 5-phase project lifecycle is widely used as a textbook example. Because of its general nature, it also serves well as a starting point for defining more specific project management processes.

1. Phase in Project Management: Initiation

The initiation phase lays the foundation of the project. The project organization is established. Based on a project proposal or a project idea, the objectives of the project are defined and the project scope is determined — for example, with the help of SMART goals. It is clarified what the project is meant to achieve and what resources are available. Stakeholders are identified, and a rough plan as well as a business case (cost-benefit analysis, supported by an economic feasibility study) are created and evaluated — for example, using a SWOT analysis or an ABC analysis — in order to assess the feasibility and value of the project.

2. Phase in Project Management: Planning

In the planning phase, the project is worked out in detail. Specific tasks, schedules, and resources are determined to achieve the project objectives. The project manager will create a project plan that defines the timeline, budget, task allocation, and necessary resources. Risk management strategies are developed to identify and address potential problems early on.

This phase also includes the establishment of quality standards and communication plans to ensure that all stakeholders are informed and coordinated. The planning phase is critical to ensuring that the project can be carried out in an organized and goal-oriented manner.

3. Phase in Project Management: Execution

In the execution phase, the project plan is put into action. The planned tasks and activities are carried out to achieve the project objectives. Project resources are made available, and the team works on the assigned tasks. Ongoing coordination and communication takes place between team members and stakeholders to ensure the project stays on track.

During this phase, progress is also monitored and any necessary adjustments to the plan are made in response to unexpected challenges. This project phase drives the project forward decisively and helps to achieve the planned results.

4. Phase in Project Management: Monitoring

In the monitoring phase, the project is continuously tracked and controlled to ensure it is proceeding according to plan. This project phase runs in parallel with execution and involves tracking progress, reviewing performance, and ensuring that project objectives are being met.

Deviations from the project plan are identified — for example, using the Earned Value Method or milestone trend analysis — and corrective measures are taken when necessary. Monitoring also encompasses risk management, quality control, and communication with stakeholders about project status. This phase is critical to ensuring that the project is completed successfully and meets its requirements.

5. Phase in Project Management: Closure

In the closure phase, the project is officially concluded. All tasks are completed, the project results are finalized, and they are handed over to the client or stakeholders. A final evaluation of the project is conducted to verify whether the objectives were achieved and the project was successful. Project resources are released, and a closing documentation is created that records all important information and insights from the project.

This phase is critical to properly closing out the project, capturing insights for future projects, and ensuring that all stakeholders are satisfied.

Visualizing Project Management Phases

Visualizing project phases is an important part of project management, as it enables a clear and understandable representation of project progress. A well-structured visualization helps simplify complex processes and improves communication between team members and stakeholders. Typical visualization methods include Gantt charts, project schedules, and milestone charts.

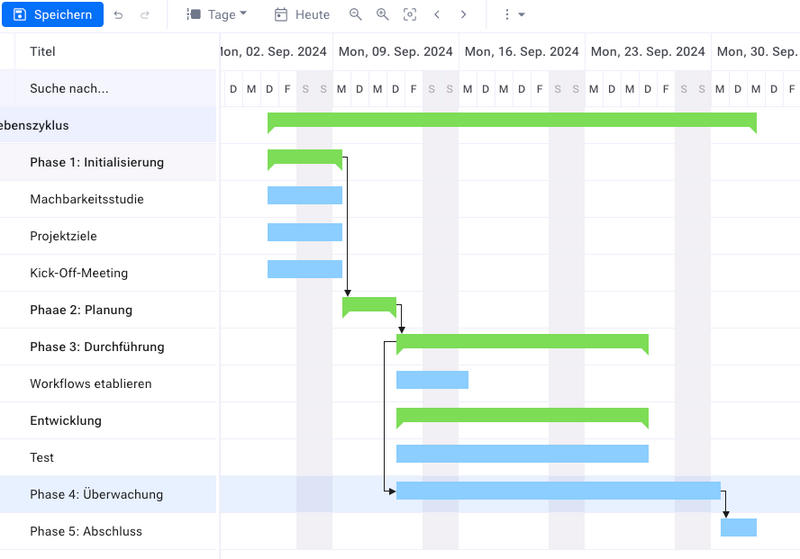

A Gantt chart in good project management software is particularly useful, as it displays the individual project phases in a temporal context. It shows at a glance which tasks are running in parallel, which have been completed, and which are still pending. The length of the bars in the chart indicates the duration of each phase.

Milestone charts offer another effective way to visualize important events or results in the project. These milestones mark decisive points in the project that signal the transition from one phase to the next.

In addition, project schedules can be presented in the form of tables or lists to clarify the sequence of tasks and their dependencies. These visualizations help maintain an overview of project progress, identify bottlenecks early, and use resources efficiently.

Characteristics of Project Phases

According to PMBOK, each project phase is characterized by the completion of one or more deliverables (products). A deliverable can be

• any tangible, verifiable work product
• a feasibility study
• a detailed design
• a working prototype.

Which specific products apply in your own project is recorded in the project manual. The completion of a project phase is generally marked by a review of both the key deliverables and the project performance, in order to

• determine whether the project should proceed to its next phase, and
• to identify and correct errors at low cost.

These end-of-phase reviews are often referred to as phase exits, stage gates, quality gates, or kill points.

Each project phase typically comprises a set of defined work products as its primary deliverables. Most of these elements relate to the result to be delivered in the corresponding phase, and the phases are usually named after these elements: requirements, design, build, test, commissioning, turnover, and others as applicable. Several representative project lifecycles are described further below.

Characteristics of the Project Lifecycle

The project lifecycle describes the entire progression of a project from start to finish, including all phases and activities. A project is often preceded by a feasibility study. This study may be treated as the first phase of the project or as a separate undertaking.

Most project lifecycles include a sequence of phases that typically involve a handover — such as handing requirements over to the design department, or construction deliverables over to production. Approvals of the results of one phase usually occur before the next phase begins. In exceptional cases, sub-phases may be started without prior approval when the risks are acceptable (fast tracking).

Project lifecycles define:

• The technical work of each phase (e.g., architecture in the definition or execution phase).
• Who is involved in each phase (e.g., implementers in the requirements and design phases).
• Costs and staffing levels. These start low, rise toward the end, and then drop quickly.
• Risk and uncertainty. These are greatest at the start of the project. As the project progresses, the likelihood of successful completion increases.
• Stakeholder requirements. The ability of stakeholders to influence the final product is highest at the beginning and decreases as the cost of changes rises.

The project lifecycle should be distinguished from the product lifecycle. A project that brings a new computer to market, for example, is only one phase of the product lifecycle.

Project lifecycles can vary depending on needs, even within the same area of application. Even sub-projects can have their own specialized project phases — for example, in the planning and support of a building’s construction.

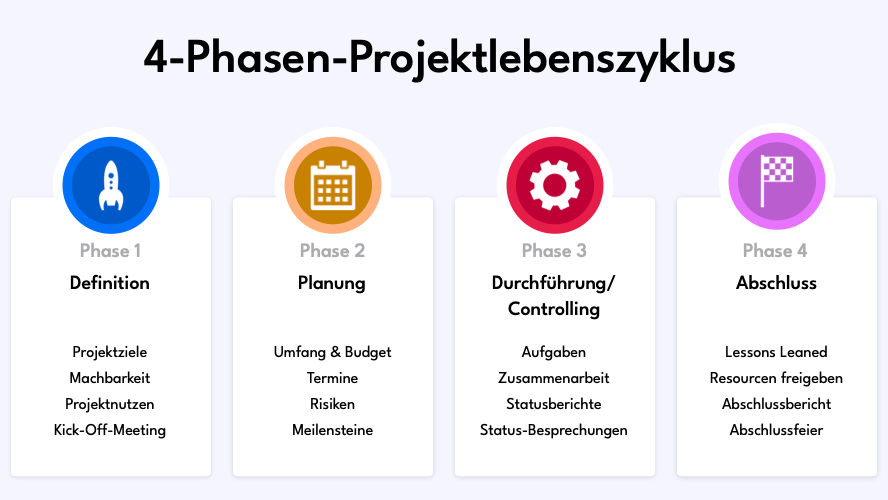

Alternative: The 4-Phase Project Management Process

The 4-phase project lifecycle is a general process often used by projects that prefer not to give further thought to this topic.

1. Definition Phase

In the definition phase, the framework of the project is established. The objectives, scope, and requirements are defined. Stakeholders and project participants are identified, and decisions are made about which resources are needed. This phase often ends with a project order that officially launches the project. A clear definition is important to ensure that all parties have the same expectations and that the project begins on a solid foundation.

2. Planning Phase

In the planning phase, a detailed project plan is developed. This includes tasks, schedules, and resources required to achieve the project objectives. Risks are assessed and measures for risk mitigation are defined. Communication plans are also created to ensure smooth collaboration. Careful planning is essential to carrying out the project in a structured and efficient manner.

3. Execution Phase / Controlling

In the execution phase, the planned tasks are implemented while project controlling encompasses the monitoring and management of the project. Work is carried out while simultaneously checking whether the project remains within time and budget. Adjustments and corrections are made to ensure the project objectives are achieved. This phase requires constant communication and coordination to secure progress.

4. Closure Phase

In the closure phase, the project is officially concluded. The results are reviewed and handed over to the stakeholders. A final assessment is conducted to evaluate the success of the project and draw lessons for future projects. Finally, all project documents are completed and resources are released. This phase is important for cleanly wrapping up the project and creating a solid foundation for future endeavors.

Industry-Specific Project Lifecycles

The following project lifecycles with their project phases have been selected to illustrate the diversity of approaches in use. The examples shown are typical; they are neither recommended nor preferred. In each case, the phase names and key deliverables are those described by the respective author.

Embedded Systems

The U.S. Department of Defense Directive 5000.2, in its revised version of February 1993, describes a series of acquisition milestones and phases.

• Determination of mission need with approval of concept studies.
• Concept exploration and definition — endpoints with concept demonstration.
• Demonstration and validation — ends with development approval.
• Engineering and manufacturing development — ends with production release.
• Production and deployment — overlaps with ongoing operations and support.

Construction

Morris describes the lifecycle of a construction project:

• Feasibility — project formulation, feasibility studies, and strategy design and approval. A go/no-go decision is made at the end of this phase.
• Planning and design — baseline design, costs and schedule, contract terms and conditions, and detailed planning. Major contracts are awarded at the end of this phase.
• Production — manufacturing, delivery, construction work, installation, and testing. At the end of this phase, the facility is substantially complete.
• Turnover and commissioning — final tests and maintenance. The facility is fully completed. Operations begin at the end of this phase.

Project Phases in Pharmaceutical Development

Murphy describes the project phases for developing new pharmaceutical products in the United States:

• Discovery and screening — includes basic and applied research to identify candidates for preclinical testing.
• Preclinical development — includes laboratory and animal testing to determine safety and efficacy, as well as preparation and submission of an Investigational New Drug application (IND).
• Registration(s) workup — includes Phase I, II, and III clinical trials, as well as preparation and submission of a New Drug Application (NDA).
• Post-submission activity — includes additional work required to support the Food and Drug Administration’s review of the NDA.

Project Phases in Software Development

For software development, the original waterfall model and the spiral model, combined with the proliferation of agile methods, have given rise to a large number of lifecycle models and corresponding project phases. Here is one example:

• The proof-of-concept cycle captures business requirements, defines the objectives for the proof of concept, creates the conceptual system design, designs and builds the proof of concept, creates acceptance test plans, conducts a risk analysis, and makes recommendations.
• First build cycle — derives system requirements, defines objectives for the first build, creates the logical system design, designs and builds the first build, creates system test plans, evaluates the first build, and makes recommendations.
• Second build cycle — derives subsystem requirements, defines objectives for the second build, creates the physical design, builds the second build, creates system test plans, evaluates the second build, and makes recommendations.
• Final cycle — unit requirements, final design, construction of the final build, conducting unit, subsystem, system, and acceptance tests.

Frequently Asked Questions

What are the 5 project phases?

The 5 project phases are initiation, planning, execution, monitoring, and closure. In each phase, specific tasks are completed to bring the project to a successful conclusion. It is important that all phases are carefully planned and monitored to ensure the efficiency and success of the project.
